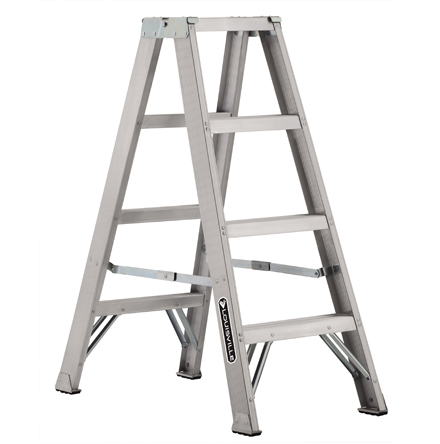

Escalera de Aluminio AM1000
136 Kg, Tipo IA Industrial Pesado
| Modelo | # de pies |
# de peldaños |
Altura total de la escalera (M) |
Altura max para pararse (M) |
Alcance max de trabajo (M) |
Peso aprox (Kg) |
Volumen aprox (M3) |
|---|---|---|---|---|---|---|---|
| AM1003 | 3 | 2 | 0.91 | 0.28 | 2.28 | 6.49 | 0.10 |
| AM1004 | 4 | 3 | 1.21 | 0.57 | 2.57 | 7.89 | 0.14 |
| AM1005 | 5 | 4 | 1.52 | 0.86 | 2.86 | 9.21 | 0.18 |
| AM1006 | 6 | 5 | 1.82 | 1.14 | 3.14 | 11.02 | 0.24 |
| AM1008 | 8 | 7 | 2.43 | 1.72 | 3.72 | 14.65 | 0.35 |
| AM1010 | 10 | 9 | 3.04 | 2.30 | 4.30 | 18.28 | 0.49 |
| AM1012 | 12 | 11 | 3.65 | 2.88 | 4.88 | 26.30 | 0.65 |
| AM1014 | 14 | 13 | 4.28 | 3.48 | 5.48 | 35.80 | 0.84 |
| AM1016 | 16 | 15 | 4.89 | 4.06 | 6.06 | 45.80 | 1.03 |
| AM1020 | 20 | 19 | 6.11 | 5.18 | 7.18 | 51.70 | 1.50 |
