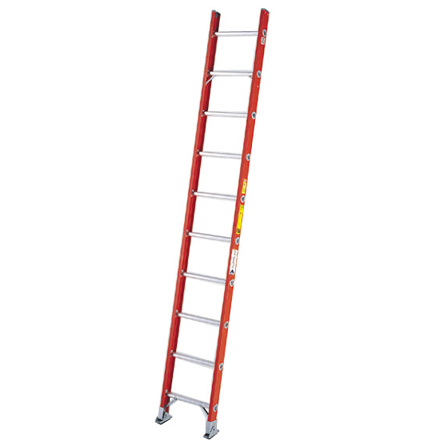

136 Kg, Tipo IA Industrial Pesado
Modelo | # de pies |
# de peldaños |
Altura total de la escalera (M) |
Altura max para pararse (M) |
Alcance max de trabajo (M) |
Peso aprox (Kg) |
Volumen aprox (M3) |
---|---|---|---|---|---|---|---|
544-08N | 8 | 8 | 2.40 | 1.40 | 3.40 | 7.26 | 0.13 |
544-10N | 10 | 10 | 3.20 | 2.00 | 4.00 | 9.44 | 0.16 |
544-12N | 12 | 12 | 3.50 | 2.50 | 4.50 | 11.43 | 0.19 |
544-14N | 14 | 14 | 4.10 | 3.10 | 5.10 | 12.75 | 0.21 |
544-16N | 16 | 16 | 4.70 | 3.70 | 5.70 | 16.56 | 0.27 |
544-18N | 18 | 18 | 5.30 | 4.30 | 6.30 | 18.42 | 0.30 |
544-20N | 20 | 20 | 5.90 | 4.90 | 6.90 | 20.69 | 0.34 |
