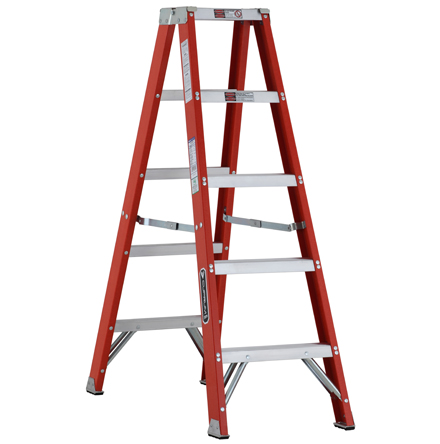

136 Kg, Tipo IA Industrial Pesado
Modelo | # de pies |
# de peldaños |
Altura total de la escalera (M) |
Altura max para pararse (M) |
Alcance max de trabajo (M) |
Peso aprox (Kg) |
Volumen aprox (M3) |
---|---|---|---|---|---|---|---|
530-03N | 3 | 2 | 0.90 | 0.28 | 2.28 | 6.53 | 0.09 |
530-04N | 4 | 3 | 1.21 | 0.57 | 2.57 | 8.25 | 0.13 |
530-05N | 5 | 4 | 1.51 | 0.86 | 2.86 | 9.61 | 0.18 |
530-06N | 6 | 5 | 1.82 | 1.15 | 3.15 | 11.25 | 0.23 |
530-08N | 8 | 7 | 2.43 | 1.73 | 3.73 | 14.83 | 0.34 |
530-10N | 10 | 9 | 3.04 | 2.35 | 4.35 | 18.39 | 0.48 |
530-12N | 12 | 11 | 3.65 | 2.90 | 4.90 | 26.08 | 0.64 |
